HOLZMANN CF500

CNC milling machine

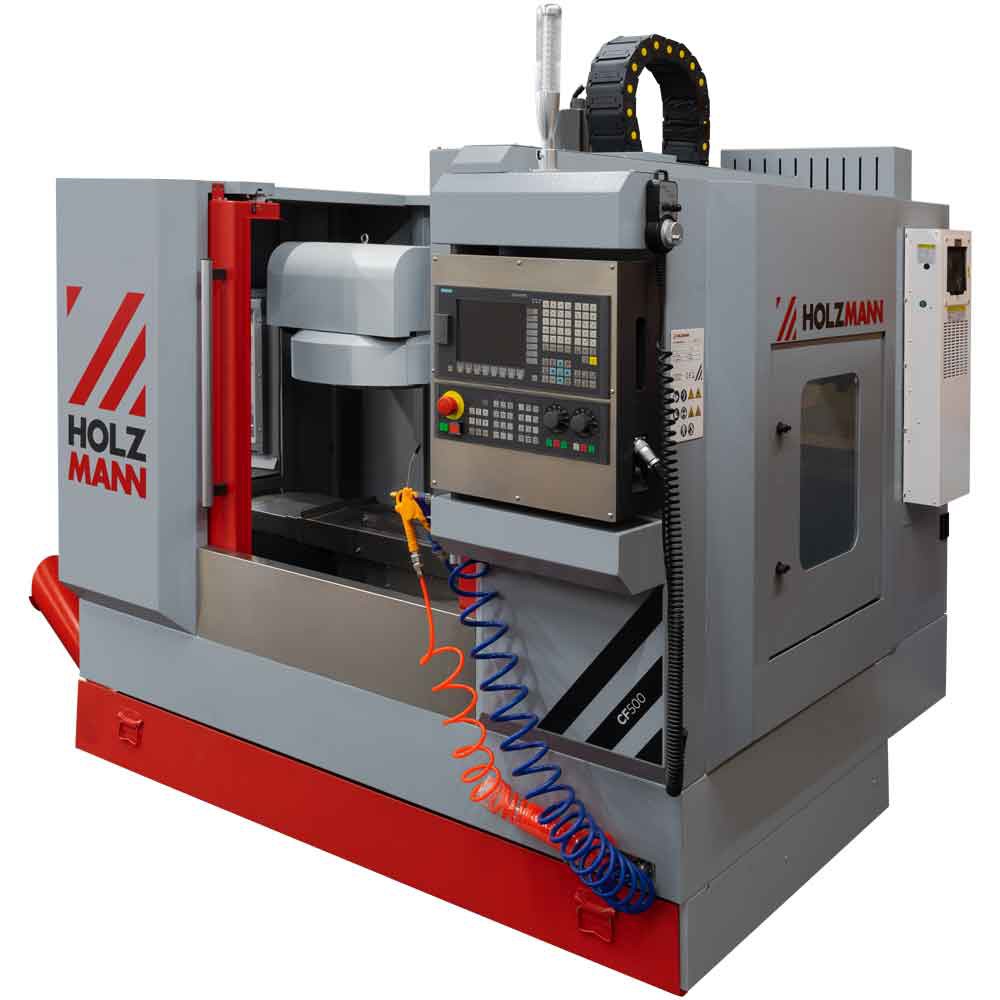

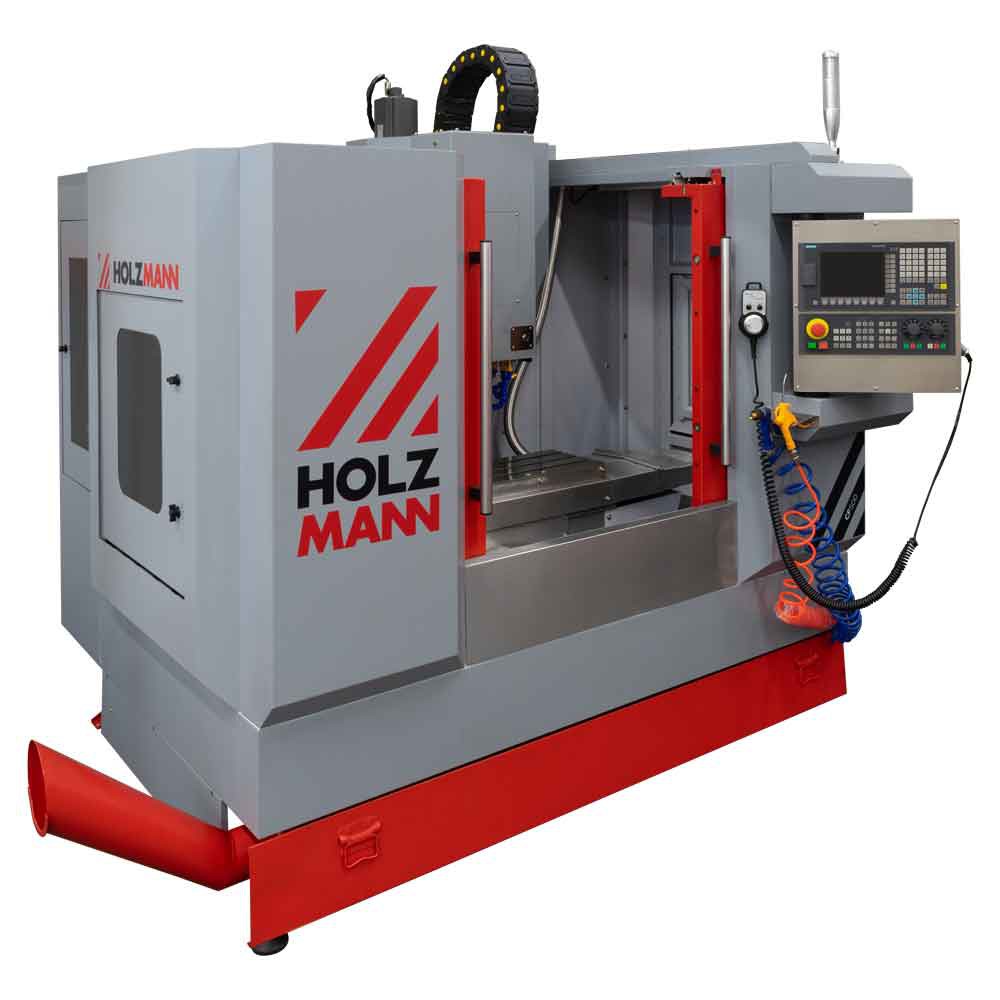

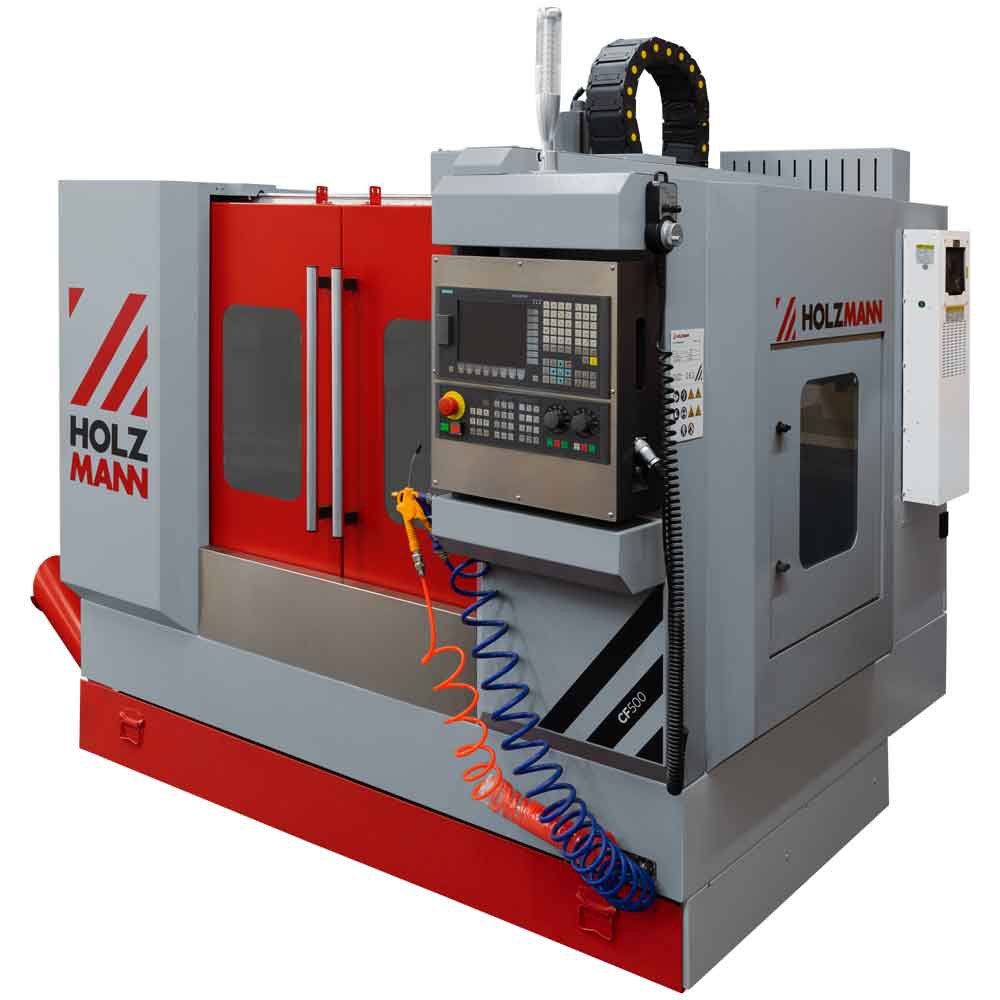

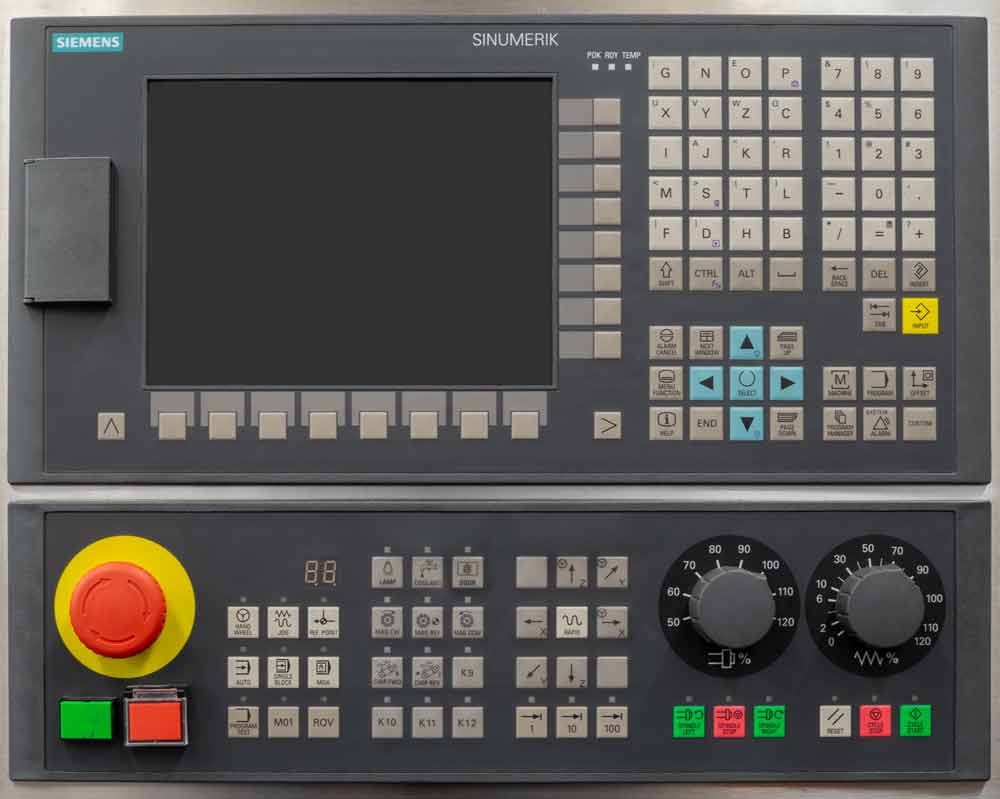

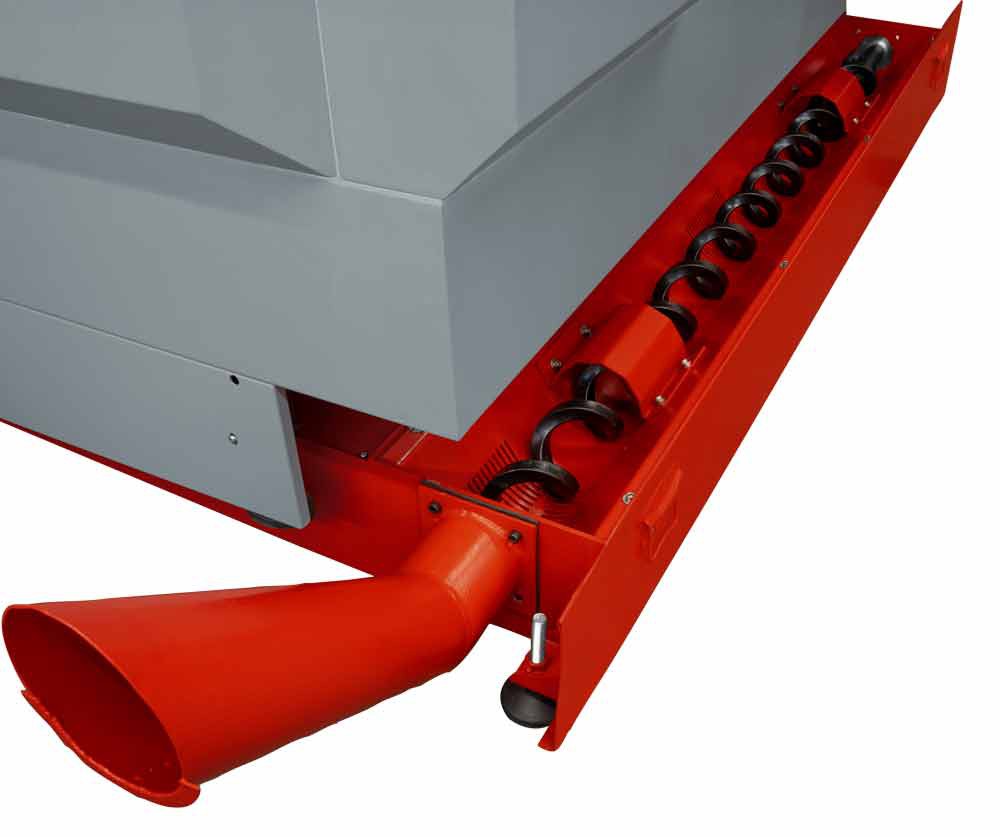

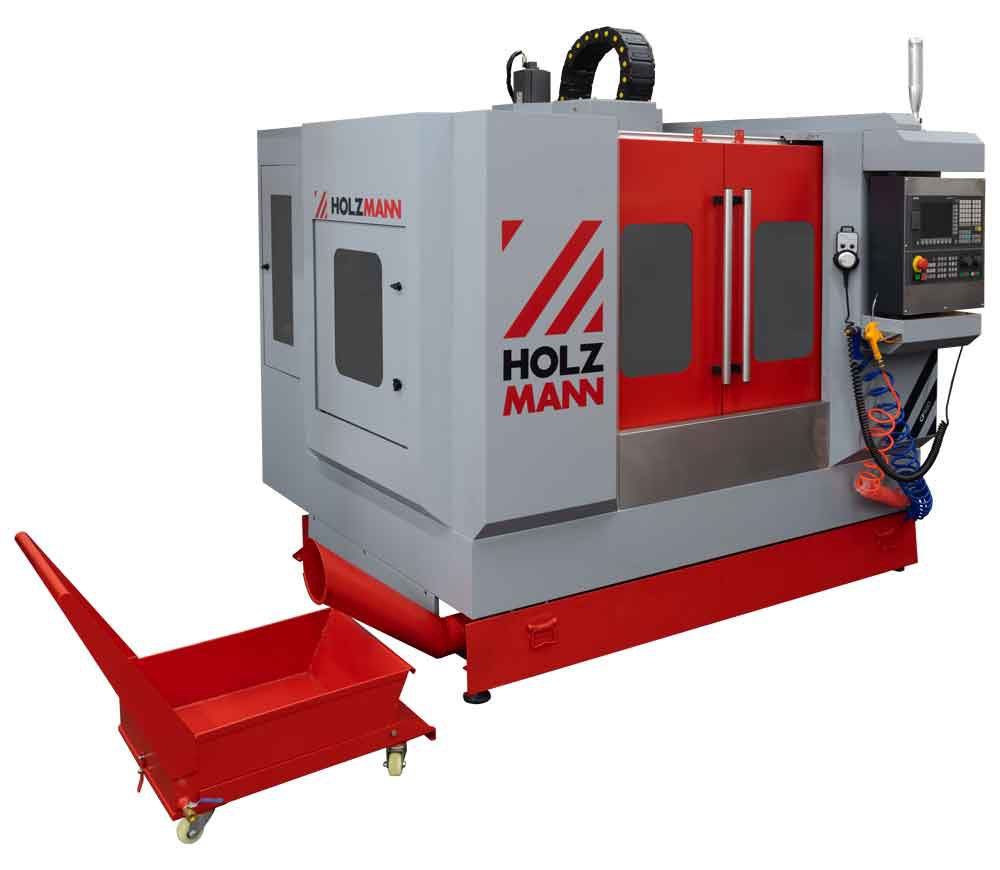

CNC metal milling machine HOLZMANN CF500 with Siemens 808D Advanced control, 12-position tool changer, chip conveyor, central lubrication and coolant pump.

Price: 624 152 CZK excluding VAT

Inquiry

Description

Power consumption: 15 kVA
Operating air pressure 4-6bar (0.4-0.6 MPa)

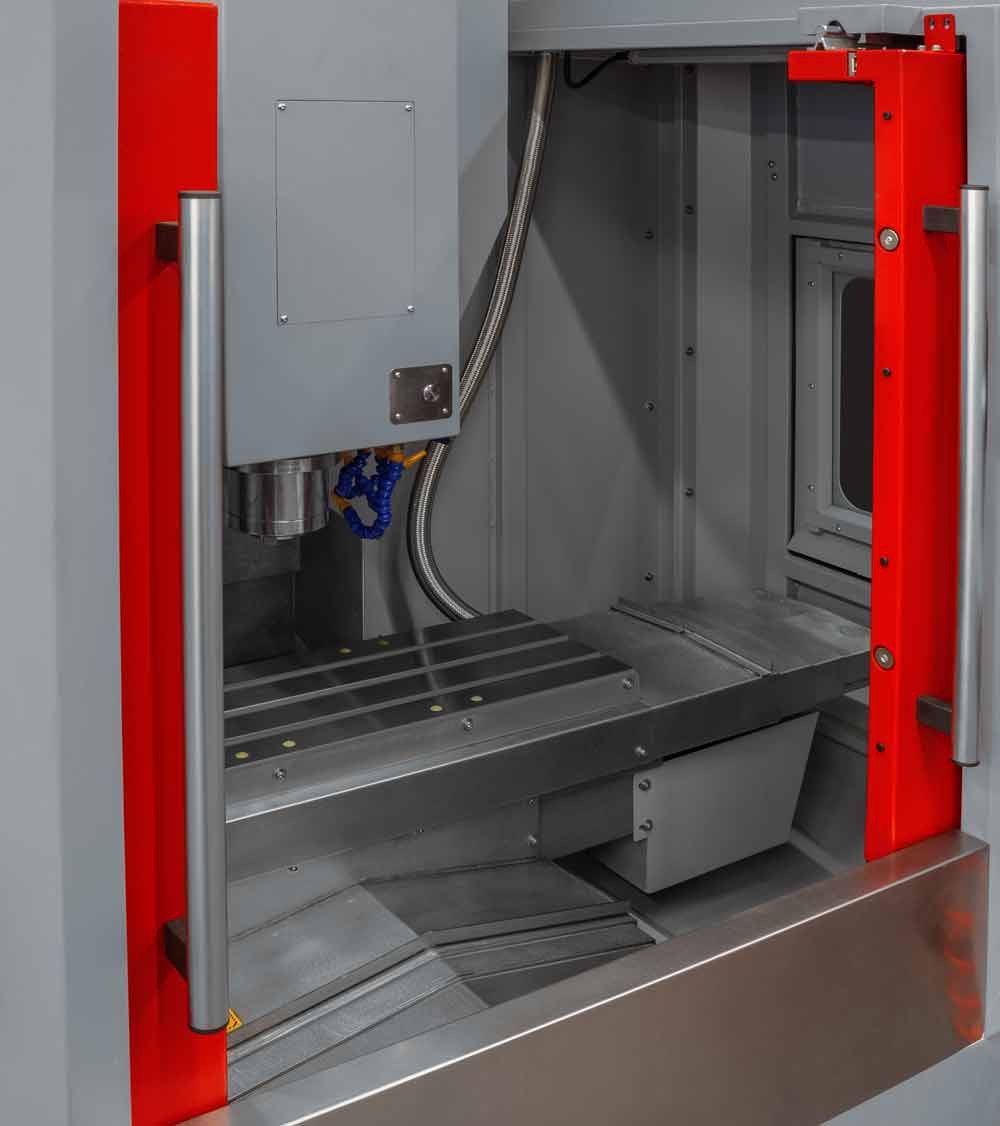

Travels:
- X-axis: 500mm
- Y-axis: 350 mm
- Z-axis: 450 mm
Spindle speed: up to 10,000 min-1

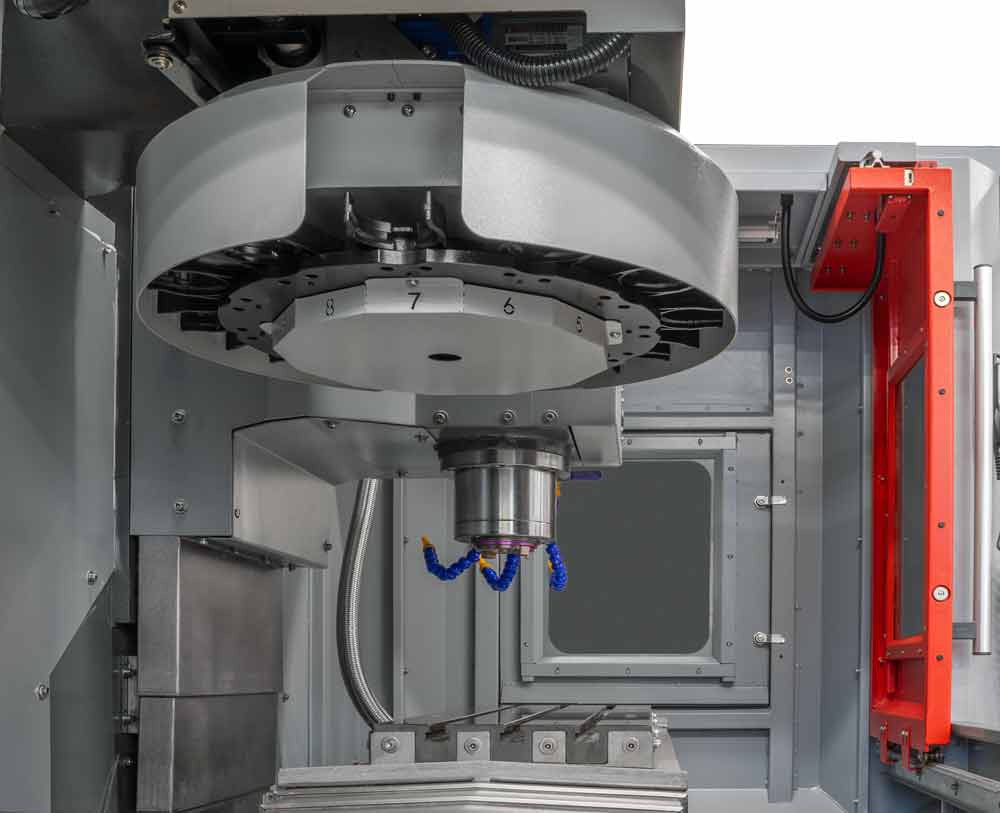

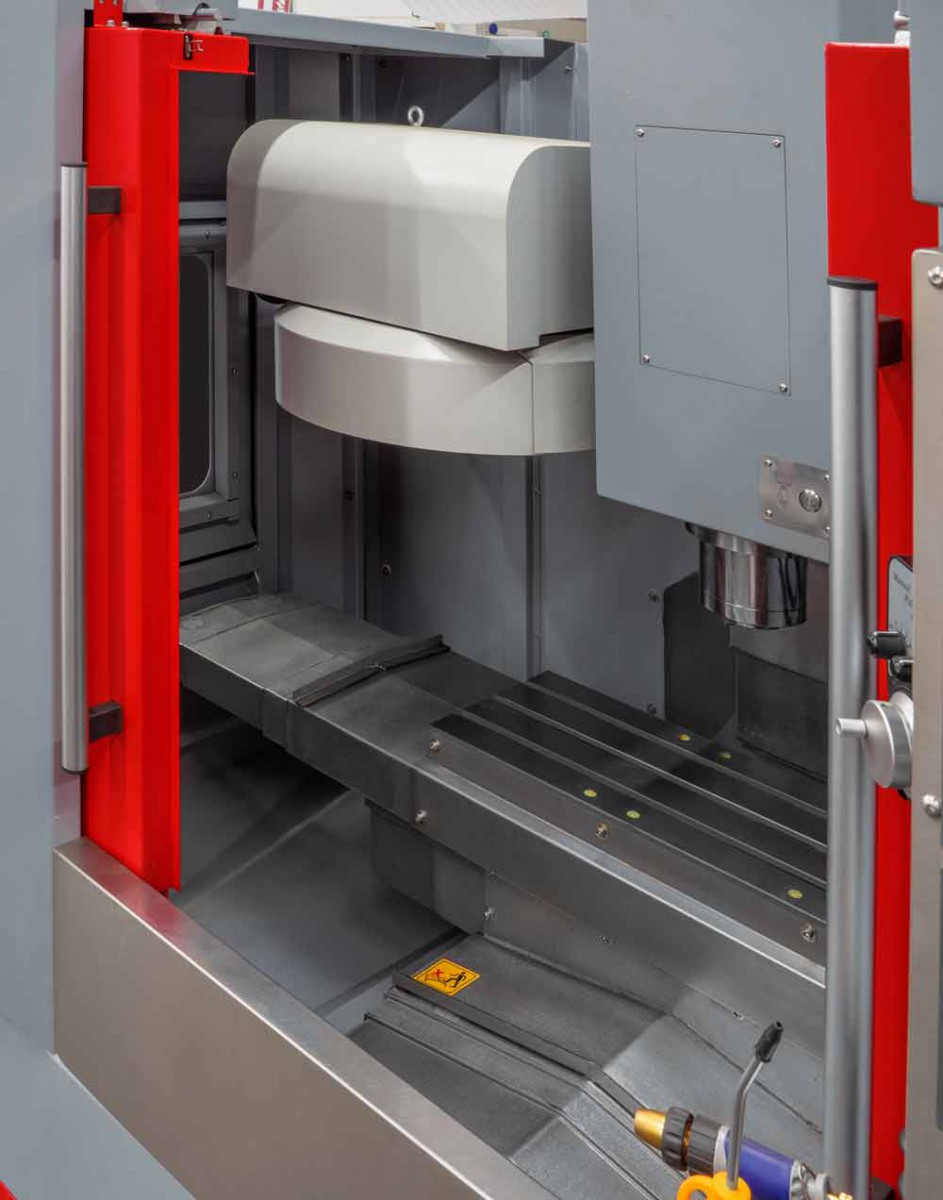

Carousel tool magazine:
- 12 tool positions
- max. diameter: Ø 100 mm (empty: Ø 200 mm)
- Change time: 3 s
- max. weight: 8 kg
Feed:
- Spindle speed: 18 (X-Y-Achse); 16 (Z-Achse) m/min
- Working feed: 1- 8000 mm/min
Accuracy:
- Position: +/- 0.01 mm
- Repeatability: +/-0.015 mm

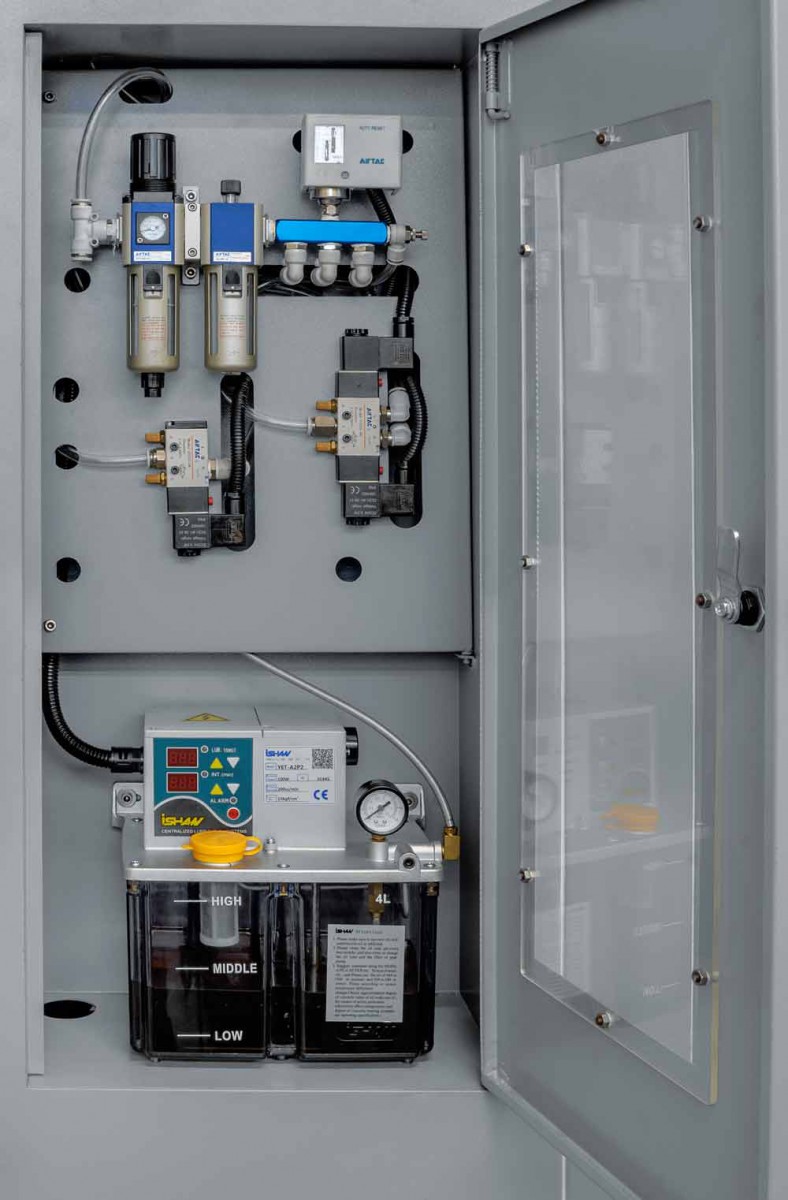

Central lubrication: Oil capacity 4 l
Coolant capacity: 17 l
